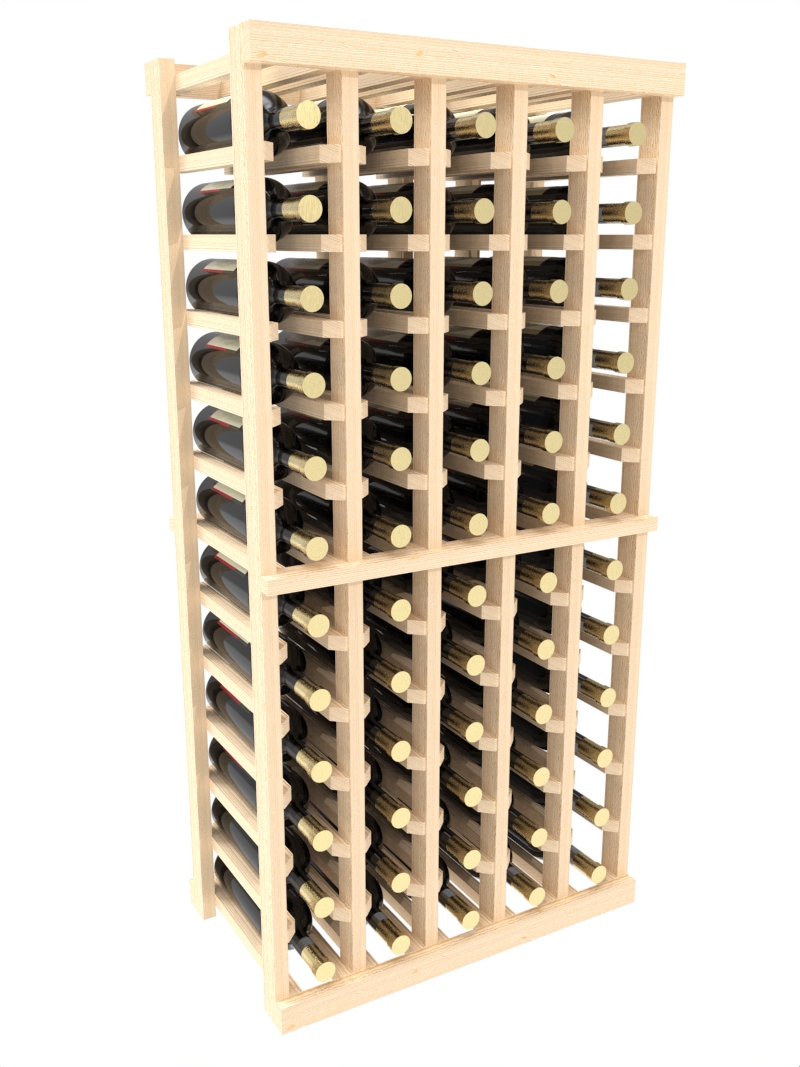

Individual Bottle Wine Rack - 5 Columns
Individual Bottle Wine Rack - 5 Columns
Step 1: Choose Height
Step 2: Choose Wood
Step 3: Choose Stain
Step 4: Choose Finish
Item#
Price: $0.00
SALE $0.00
Qty:
Price Match Guarantee
Specs and Features

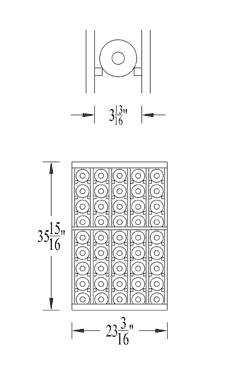

3 Ft Rack height - 35 15/16" width - 23 3/16" depth - 13 1/2" bottle capacity - 45

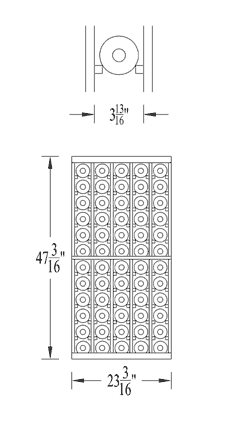

4 Ft Rack height - 47 3/16"width - 23 3/16" depth - 13 1/2" bottle capacity - 60
6 Ft Rack height - 72 9/16" width - 23 3/16" depth - 13 1/2" bottle capacity - 90
7 Ft Rack height - 83 13/16"width - 23 3/16" depth - 13 1/2" bottle capacity - 105
8 Ft Rack height - 95 1/16" width - 23 3/16" depth - 13 1/2" bottle capacity - 120
9 Ft Rack height - 109 3/16"width - 23 3/16" depth - 13 1/2" bottle capacity - 135
This product is 13 1/2" deep.
MORE IMAGES
- Stacked Vintner in Premium Unstained Redwood
- Vintner in Premium Redwood, stained Dark Walnut
- Newly Installed Vintner Racks: Glass Enclosed
For more product choices:
- Vintner Series Wine Racks
- Wine Racks - All other options
Care & Maintenance for WCI Cabinetry
WILL MY WINE BOTTLES FIT IN THIS RACK?
| Bottle | Typical Bottle Diameter | Does it Fit in this Rack? |
| Split/Half 375ml | 2-3/8" | |
| Bordeaux | 2-15/16" |  |
| Burgundy | 3-1/4" | |
| Small Champagne | 3-3/8" | |
| Pinot Noir | up to 3-3/8" | |
| Turley | up to 3-9/16" |  |
| Large Champagne | 3-3/4" | |
| Magnum Bordeaux 1.5L | 3-15/16" | |
| Magnum Champagne 1.5L | 4-3/8" | |
| Double Magnum 3L | 5-1/8" |
*Please note that due to the size of these formats, when storing any combination of these 3 bottle types in this wine rack one on top of another that the bottles may touch. Please exercise caution upon removing these bottles from the racking by lifting the upper bottle to safely remove the lower one.
- Versatile wine racking
- Can accommodate just about any ceiling height
- Custom, organized look at affordable prices
- Many racking styles and display options
- Made in the USA
BASE PLATFORMS -
Utilize this platform specifically designed and engineered to elevate each wine rack kit. You must also purchase this special platform in order to use the 5 1/4" base molding package. This platform can support one wine rack, or two stacked. The platform is 3 13/16" High, and will allow you to maximize the rack height in any room. Please note: If you order the platform stained, only the top will be stained, as majority of customers will be attaching base molding to the front of the platform. If you would like the front or the side of the platform to be stained, you should order a half pint of stain from us to touch it up. Please call to order stain. Additional cost applies.
Platforms are available for purchase here.KIT SERIES UPGRADES
Stacking & Center Trim - Our stackable Vintner/WMK line is sold in 3 and 4 foot sizes, which makes stacking up to your ceiling height a breeze. When ordering 6, 7, 8, or 9 foot heights, you will be sent multiple 3 & 4 foot racks to assemble and stack yourself. Be sure to watch our assembly videos for the best way to put them together. When stacking to a greater heights, you may wish to purchase center trim, which will cover the space where the specific racks meet.
- 6 Foot Racking = Two 3 foot racks
- 7 Foot Racking = One 3 foot rack, and one 4 foot rack
- 8 Foot Racking = Two 4 foot racks
- 9 Foot Racking = Three 3 foot racks
Spacer Bars:
Spacer bars are sent with a dado that snugly fits each column of your racking. Assembly can be done either by hand with the nails provided or by utilizing a brad nailer for faster assembly. If you would prefer to assemble your rack with screws you will need to predrill and countersink the holes to ensure you do not split the material.

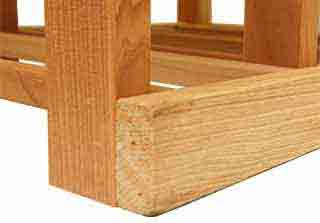

Bottom Rail: All the racks in this Series have a 1 7/16" square cut bottom rail. With these rails, your bottles are stored securely above the floor level so they do not break accidentally by hitting a hard floor. In addition, the base molding supplied with this Series is 1 7/16" high and can be applied directly to the front of this rail.Manuals
Standard Racking Warranty
Wine Rack Concepts warrants its wine racking to be free from defects due to workmanship or material under normal use and service, for five (5) years from the initial ship date. If the product is defective due to workmanship or materials, Wine Rack Concepts will, at its option, repair or replace the product free of charge. Any mechanical components utilized in the wine cellar, such as hinges or magnetic catches will have a one (1) year warranty.
This warranty sets forth Wine Rack Concepts maximum liability for its products and is in lieu of all other warranties, including a warranty of merchantability, expressed or implied. This warranty does not cover products that are not Wine Rack Concepts racking, Acts of God, and products subjected to conditions outside their design limitations.
Optional Lifetime Warranty
Wine Rack Concepts warrants its wine racking to be free from defects due to workmanship or material under normal use and service, for the lifetime that the owner remains in the residence. To qualify for this optional warranty the product must be installed by a certified factory installer. If the product is defective due to workmanship or materials, Wine Rack Concepts will, at its option, repair or replace the product free of charge. Any mechanical components utilized in the wine cellar, such as hinges or magnetic catches will have a one (1) year warranty.
This warranty sets forth Wine Rack Concepts maximum liability for its products and is in lieu of all other warranties, including a warranty of merchantability, expressed or implied. This warranty does not cover products that are not Wine Rack Concepts racking, Acts of God, and products subjected to conditions outside their design limitations.
